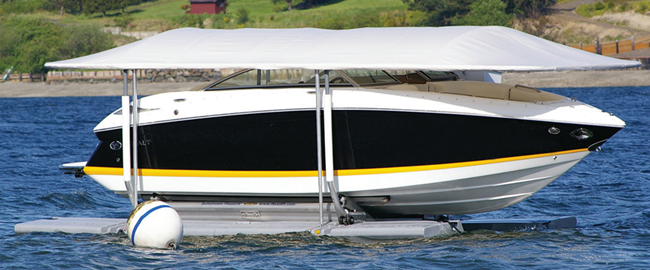

Sunstream Floatlift Boat Lift
Sunstream's FloatLift ties to your dock like your boat and effortlessly supports the hull in as little as a foot of water under the boat keel / skeg.
- 1st Free-Standing Hydraulic Lift
- 1st Free-Floating Hydraulic Lift
- 1st Automatic Cover System
Rise to the top and stay there.
No other lift is built like a Sunstream.
Features
Foam-Filled Floats
Unsinkable floats gives peace of mind that your boat is protected.
The foam also enables the lift to support the boat on soft bottoms if the water drops.
Shallowest Water Floating Lift
When the frame is lowered, the boat typically only needs a few inches under the keel/skeg to clear this beam.
GravityLock™
The floats are locked in the up position with the wheels going over the top of this casting. Designed to prevent accidental lowering if a hose leaks.
Cylinders Over the Water
The cylinders are kept safe from the elements by being above water in the up position, and fully retracted.
Stainless shaft, polyurea coated body and scraper seal gives long life to the cylinders.
SuperBunks™
Sunstream's Superbunks are known as the best bunks in the industry for ideal boat fit, durability, softness on hull, distributed load and shallow water.
Adjustable Bunk Brackets
Bunks are adjustable to best fit boat. Optional longer brackets are available for boats with deep skegs.
Guides
Lift comes standard with one set of guides. An additional set may be added for the front. The HoverCover can be added which extends from the guides and raises when the boat lowers.
Dock Line Ties
Lift can be tied to dock or mooring.
Spring Tie Line Location Locations to secure Fore/aft lines.
Marine Grade Aluminum Frame
Built like an aluminum boat, with optional zincs for salt water use.
Stainless Steel Hardware
Lift is designed for long term durability in salt or fresh water.
Walk-on Floats
Access your hull and drives, with walk-on floats.
FL10014D
High Performance Hydraulics
- The raised cylinders retract above water and optional zincs protect submerged aluminum components.
- Sunstream's powerful hydraulics pull the floats under the boat in as little as 30 seconds.
- Charge the DC system with AC or solar options for complete freedom.
Quality Construction
- The frame is Marine-grade aluminum and fitted with stainless steel hardware for fresh or saltwater.
- The Floatlift's foam‐filled polyethylene pontoons quickly raise your boat.
- The patented GravityLock™ is designed to keep your boat secure.
Shallow Water Access
- The FloatLift typically needs just 12′ of water under the keel or skeg.
- The foam filled floats can support the boat on the soft seabed even if the tide goes out.
- FloatLift's low‐profile floats split high waves allowing use practically anywhere you would moor your boat.
Sizes Available
MEDIUM
- FL6012D ‐ 5,500 lb
- FL7012D ‐ 7,000 lb
LARGE
- FL10014D ‐ 10,500 lb
- FL13018D ‐ 13,000 lb
- FL13018D-W ‐ 13,000 lb
- FL15023D ‐ 150,00 lb
- FL15023D-W ‐ 15,000 lb
X‐LARGE
- FL24020D ‐ 24,000 lb
- FL36026D ‐ 36,000 lb
- FL40026D ‐ 40,000 lb
Floatlift Examples
