Mooring Balls

Dock Guys Mooring Ball - Hard Shell - Taylor Made

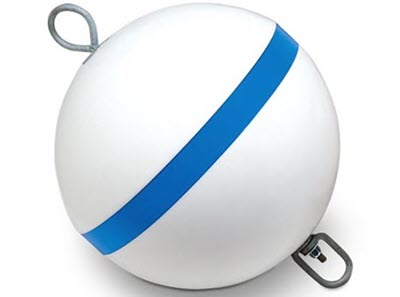

Traditional Sur Moor Mooring Buoy

White with a reflective blue stripe for visibility
Comes with Hot-dipped galvanized steel hardware
Sandblasted finish allows for identification painting

Diameter / Circumference / Apprx Buoyancy *

12″ Ball / 38″ / 30 lbs

15″ Ball / 47″ / 60 lbs

18″ Ball / 57″ / 100 lbs

* The number indicated is the maximum flotation the buoy provides while fully submerged. 50% of this value will be the weight the buoy can support at the level of the blue stripe.

Mooring Ball Buoy Hard Shell Taylor Made

WARNING

Mooring lines must never be tied to the top loop. Mooring lines should always be attached to the anchor chain.

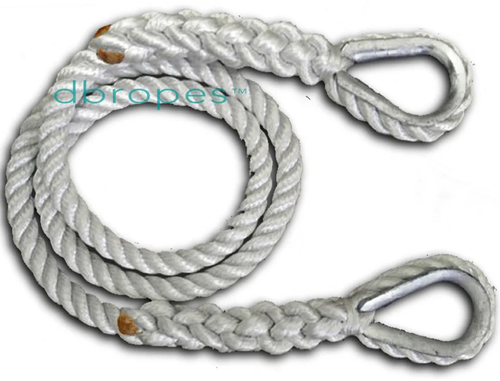

Pendant

6′ Pendant ‐ 5/8″ braided nylon with two stainless steel thimbles

5/8″ x 6′ ‐ 3 Strand Mooring Pendant Line 100% Nylon with Stainless Steel Thimble

5/8″ x 12′ ‐ 3 Strand Mooring Pendant Line 100% Nylon with 3 Stainless Steel Thimbles

Long-Link Mooring Chain - G43

High tensile strength 3/8″ long link galvanized mooring chain with long links that allows the use of shackles.

Finish: G43 grade - Hot dip galvanized for maximum wear and corrosion resistance.

Mooring chains should be at least twice the high water depth where the deadweight anchor is set.
Due to the weight, this item is available for pick up only in Winslow, Maine.

Medium Rigging

Stainless swivel snap clip

3/8″ Galvanized eye to eye swivel

3/8″ Galvanized bow shackle

Concrete Mooring Anchors

250 Lb. 24″ round with 3/8″ galvanized or stainless hook points.

Due to the weight, this item is available for pick up only in Winslow, Maine.
